Key Features
◆ VCC: 1.4V to 5.5V
◆ Temperature Accuracy:
±1.0oC(Max.) from -20oC to 100oC
2.0oC(Max.) from -40oC to 125oC
◆ Standby Current: 30nA(Typ.)
◆ Average Quiescent Current: 3uA(Typ.) at 1.0Con/s, 3.3V
◆ 8 bit ADC for 1.0oC resolution
◆ Compatible with SMBus, 2-wire and I2C interface
◆ Programmable Over/Under Temperature
◆ 8 different slave address available with different suffix
Applications
◆ Camera Module
◆ SSD
◆ Portable Devices
Package
◆ CSP-4
(WxLxH:0.73mmx0.73mmx0.55mm)
Temperature Range
◆ -50 to 125oC

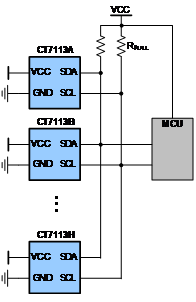

Typical Application
Single point temperature monitor multi points temperature monitor

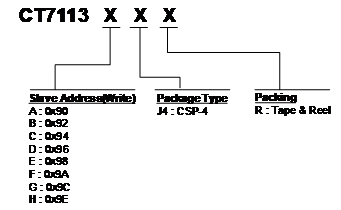

Ordering Information
| Order PN | Slave Address
(Write) | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT7113AJ4R | 0x90 | ±1.5oC | Halogen free | CSP-4 | DP | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7113BJ4R | 0x92 | ±1.5oC | Halogen free | CSP-4 | DQ | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7113CJ4R | 0x94 | ±1.5oC | Halogen free | CSP-4 | DR | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7113DJ4R | 0x96 | ±1.5oC | Halogen free | CSP-4 | DS | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7113EJ4R | 0x98 | ±1.5oC | Halogen free | CSP-4 | DT | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7113FJ4R | 0x9A | ±1.5oC | Halogen free | CSP-4 | DU | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7113GJ4R | 0x9C | ±1.5oC | Halogen free | CSP-4 | DY | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7113HJ4R | 0x9E | ±1.5oC | Halogen free | CSP-4 | DZ | Tape & Reel | 3,000 | -40oC~+125oC |
