Key Features
◆ VCC: 1.75V to 5.5V
◆ Temperature Accuracy:
±0.5oC(Max.) over 0oC to 50oC
±1.0oC(Max.) over -20oC to 85oC
±1.5oC(Max.) over -40oC to 125oC
◆ Average Current Consumption 7.0uA (Typ.), 10uA (Max.)
(1 time measurement per second):
◆ Standby Current: 1.5uA (Typ.), 3.0uA (Max.)
◆ Temperature Conversion time: 30ms
◆ 12-bit ADC with 0.0625oC Resolution
◆ Compatible with I2C, SMBus, 2-wire interface
◆ Generate 4 different slave address by setup A0 PIN
◆ Support SMBus ALERT Response Address(ARA)
◆ ALERT Output for Over/Under setup temperature
Applications
◆ Smart HVAC System
◆ Thermal Management
◆ Industry Temperature Controller
◆ PC or Server
Package
◆ DFN-1.6x1.6-6

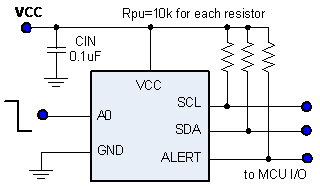

Typical Application

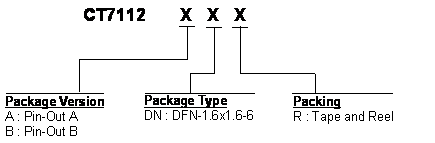

Ordering Information
| Order PN | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT7112ADNR | ±0.5oC | Halogen free | DFN-1.6x1.6-6 | AG
TWWA | Tape & Reel | 3000 | -40oC~+125oC |
| CT7112BDNR | ±0.5 oC | Halogen free | DFN-1.6x1.6-6 | AH
YWWA | Tape & Reel | 3000 | -40oC~+125oC |
