Key Features
◆ VCC: 1.75V to 5.5V
◆ Temperature Accuracy:
±0.5oC(Max.) over 0oC to 50oC
±1.0oC(Max.) over -20oC to 85oC
±1.0oC(Max.) over -20oC to 85oC
◆ Average Current Consumption 7.0uA (Typ.), 10uA (Max.)
(1 time measurement per second):
◆ Standby Current: 1.5uA (Typ.), 3.0uA (Max.)
◆ Temperature Conversion time: 30ms
◆ 12-bit ADC with 0.0625oC Resolution
◆ Compatible with I2C, SMBus, 2-wire interface
◆ Generate 32 different slave address by setup A0/A1/A2 PIN
◆ Support SMBus ALERT Response Address(ARA)
◆ Compatible with industry LM75/TMP75 with performance improved
◆ ALERT Output for Over/Under setup temperature with programmable active High/Low
Applications
◆ Smart HVAC System
◆ Thermal Management
◆ Industry Temperature Controller
◆ PC or Server
Package
◆ SOP-8
◆ MSOP-8
◆ DFN-3x3-8

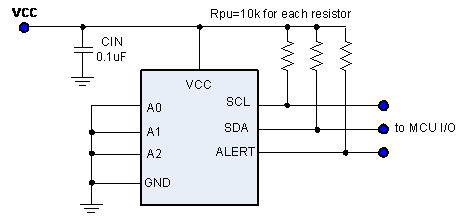

Typical Application
Ordering Information
| Order PN | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT75MR | ±0.5oC | Halogen free | SOP-8 | 75
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT75MB | ±0.5oC | Halogen free | SOP-8 | 75
YWWAXX | Tube | 10,000 | -40oC~+125oC |
| CT75MMR | ±0.5oC | Halogen free | MSOP-8 | 75
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT75MMB | ±0.5oC | Halogen free | MSOP-8 | 75
YWWAXX | Tube | 32,000 | -40oC~+125oC |
| CT75DNR | ±0.5oC | Halogen free | DFN3x3-8 | 75
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
