Key Features
◆ VCC: 1.75V to 5.5V
◆ Temperature Accuracy:
±1.0oC (Max.) over 0oC to 80oC
±2.5oC (Max.) over -40oC to 125oC
◆ Average Current Consumption 2.5uA (Typ.) @ 3.3V
(1 time measurement per second):
◆ Standby Current: 1.5uA (Typ.)
◆ 12-bit ADC with 0.0625oC Resolution
◆ Compatible with I2C, SMBus, 2-wire interface
◆ 8 different slave address available
Applications
◆ Camera Module
◆ SSD
◆ Portable Device
Package
◆ CSP-4
◆ (L x W: 0.72mm x 0.72mm)

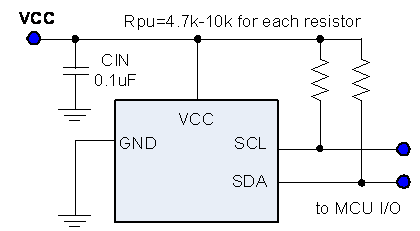

Typical Application

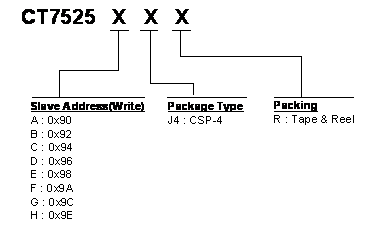

Ordering Information
| Order PN | Slave Address
(Write) | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT7525AJ4R | 0x90 | ±1.0oC | Halogen free | CSP-4 | CF | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7525BJ4R | 0x92 | ±1.0oC | Halogen free | CSP-4 | CG | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7525CJ4R | 0x94 | ±1.0oC | Halogen free | CSP-4 | CH | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7525DJ4R | 0x96 | ±1.0oC | Halogen free | CSP-4 | CJ | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7525EJ4R | 0x98 | ±1.0oC | Halogen free | CSP-4 | CK | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7525FJ4R | 0x9A | ±1.0oC | Halogen free | CSP-4 | CL | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7525GJ4R | 0x9C | ±1.0oC | Halogen free | CSP-4 | CM | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7525HJ4R | 0x9E | ±1.0oC | Halogen free | CSP-4 | CN | Tape & Reel | 3,000 | -50oC~+150oC |
