Key Features
◆ VCC: 1.75V to 5.5V
◆ Temperature Accuracy:
±1.0oC (Max.) over 0oC to 110oC
±2.0oC (Max.) over -40oC to 125oC
◆ Average Current Consumption 45uA (Typ.) @ 3.3V
(1 time measurement per second):
◆ Standby Current: 3.0uA (Max.)
◆ Temperature Conversion time (single channel): 16ms
◆ 11-bit ADC with 0.125oC Resolution
◆ Compatible with I2C, SMBus, 2-wire interface
◆ Support SMBus ALERT Response Address(ARA)
◆ ALERT/THERMAL Output for over setup temperature
Applications
◆ Desktop & Notebook Computer
◆ Server
◆ Telecom Equipment
◆ Multi-cell Battery Pack
Package
◆ SOP-8
◆ MSOP-8
◆ DFN-3x3-8

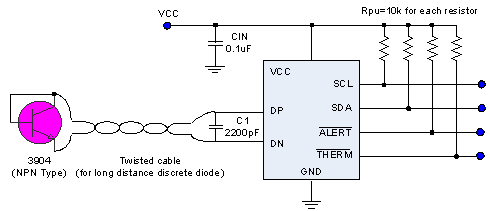

Typical Application
Ordering Information
| Order PN | Slave Address
(R/W) | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT7318DNR | 0x99/98 | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318DNR-A | 0x91/90 | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318DNR-B | 0x93/92 | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318DNR-C | 0x95/94 | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318DNR-D | 0x9B/9A | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318DNR-E | 0x97/96 | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318DNR-F | 0x9D/9C | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318DNR-G | 0x9F/9E | ±1 oC | Halogen free | DFN3x3-8 | 7318
YWWAXX | Tape & Reel | 3000 | -40oC~+125oC |
| CT7318MR | 0x99/98 | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MR-A | 0x91/90 | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MR-B | 0x93/92 | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MR-C | 0x95/94 | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MR-D | 0x9B/9A | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MR-E | 0x97/96 | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MR-F | 0x9D/9C | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MR-G | 0x9F/9E | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7318MB | 0x99/98 | ±1oC | Halogen free | SOP-8 | 7318
YWWAXX | Tube | 10,000 | -40oC~+125oC |
| CT7318MMR | 0x99/98 | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMR-A | 0x91/90 | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMR-B | 0x93/92 | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMR-C | 0x95/94 | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMR-D | 0x9B/9A | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMR-E | 0x97/96 | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMR-F | 0x9D/9C | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMR-G | 0x9F/9E | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tape & Reel | 3,000 | -40oC~+125oC |
| CT7318MMB | 0x99/98 | ±1oC | Halogen free | MSOP-8 | 7318
YWWAXX | Tube | 10,000 | -40oC~+125oC |
