Key Features
◆ VCC: 1.75V to 5.5V
◆ Temperature Accuracy:
±1.0oC (Max.) over 0oC to 85oC
◆ ±2.0oC (Max.) over -40oC to 125oC
◆ Average Current Consumption 5.8uA (Typ.) @ 3.3V
(1 time measurement per second):
◆ Standby Current: 3.0uA (Typ.)
◆ Temperature Conversion time (each channel): 16ms
◆ 12-bit ADC with 0.0625oC Resolution
◆ Compatible with I2C, SMBus, 2-wire interface
◆ Support SMBus ALERT Response Address(ARA)
◆ ALERT Alarm Output
◆ Serial Resistance Cancellation
◆ n-Factor Correction
◆ Thermal Diode Fault Detection
Applications
◆ CPU, FPGA
◆ Desktop & Notebook PC, Server
◆ Telecom Equipment

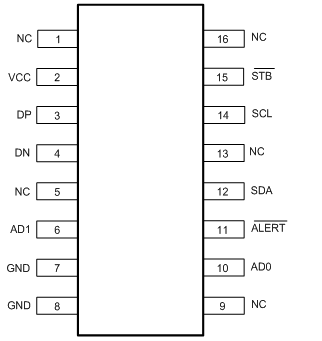

Package
◆ SSOP-16

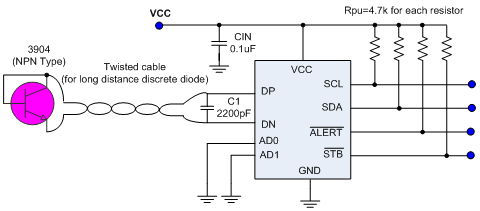

Typical Application
Ordering Information
| Order PN | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT7319MSR | ±1.0 oC | Halogen free | SSOP-16 | 7319
YWWAXX | Tape & Reel | 4,000 | -40oC~+125oC |
| CT7319MSB | ±1.0 oC | Halogen free | SSOP-16 | 7319
YWWAXX | Tube | 10,000 | -40oC~+125oC |
