Key Features
◆ VCC: 2.2V to 5.5V
◆ Temperature Accuracy:
±1.0oC (Max.) over 0oC to 85oC
±2.0oC (Max.) over -40oC to 125oC
◆ Average Current Consumption 20uA (Typ.) @ 3.3V
(1 time measurement per second):
◆ Standby Current: 3.0uA (Typ.)
◆ Temperature Conversion time (each channel): 16ms
◆ 12-bit ADC with 0.0625oC Resolution
◆ Compatible with I2C, SMBus, 2-wire interface
◆ Support SMBus ALERT Response Address(ARA)
◆ ALERT/THERMAL Output for over setup temperature
◆ Serial Resistance Cancellation
◆ n-Factor Correlation
◆ Thermal Diode Fault Detection
Applications
◆ Desktop & Notebook Computer
◆ Server
◆ Telecom Equipment
◆ Multi-cell Battery Pack

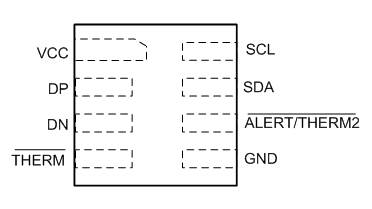

Package
◆ DFN-2x2-8

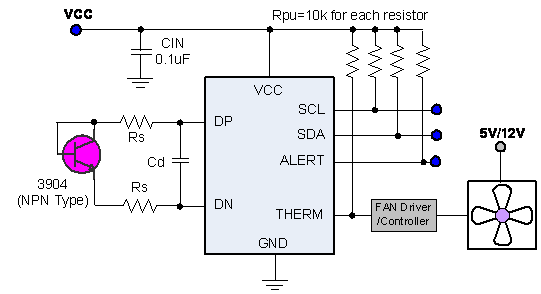

Typical Application

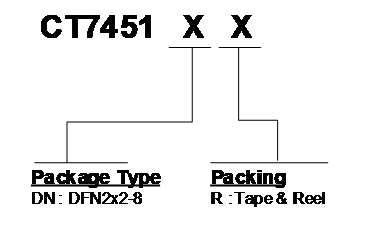

Ordering Information
| Order PN | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT7451DNR | ±1 oC | Halogen free | DFN2x2-8 | CA
YWWA | Tape & Reel | 3,000 | -50oC~+150oC |
