Key Features
◆ VCC: 1.4V to 5.5V
◆ Temperature Accuracy:
±0.1oC(Max.) from -20oC to 80oC
±0.3oC(Max.) from -40oC to 125oC
±0.5oC(Max.) from -50oC to 150oC
◆ Standby Current: 30nA(Typ.)
◆ Average Quiescent Current: 3uA(Typ.) at 1.0Con/s, 3.3V
◆ 16 bit ADC for 0.0078125oC resolution
◆ Compatible with SMBus, 2-wire and I2C interface
◆ Programmable Over/Under Temperature
◆ 8 different slave address available with different suffix
◆ PEC feature to improve communication reliability and robustness
Applications
◆ Thermal Camera
◆ SSD
◆ Portable Devices
Package
◆ CSP-4
(WxLxH:0.73mmx0.73mmx0.55mm)
Temperature Range
◆ -50 to 150oC
Temperature Accuracy Performance (vs. T & V)
Typical Application

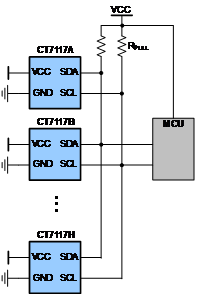

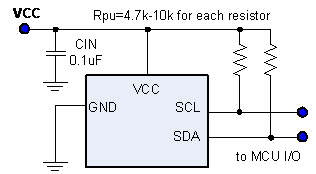

Single point temperature monitor Multi points temperature monitor
Ordering Information
| Order PN | Slave Address
(Write) | Accuracy | Green1 | Package | Marking ID2 | Packing | MPQ | Operation Temperature |
| CT7117AJ4R | 0x90 | ±0.5oC | Halogen free | CSP-4 | DF | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7117BJ4R | 0x92 | ±0.5oC | Halogen free | CSP-4 | DG | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7117CJ4R | 0x94 | ±0.5oC | Halogen free | CSP-4 | DH | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7117DJ4R | 0x96 | ±0.5oC | Halogen free | CSP-4 | DJ | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7117EJ4R | 0x98 | ±0.5oC | Halogen free | CSP-4 | DK | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7117FJ4R | 0x9A | ±0.5oC | Halogen free | CSP-4 | DL | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7117GJ4R | 0x9C | ±0.5oC | Halogen free | CSP-4 | DM | Tape & Reel | 3,000 | -50oC~+150oC |
| CT7117HJ4R | 0x9E | ±0.5oC | Halogen free | CSP-4 | DN | Tape & Reel | 3,000 | -50oC~+150oC |
